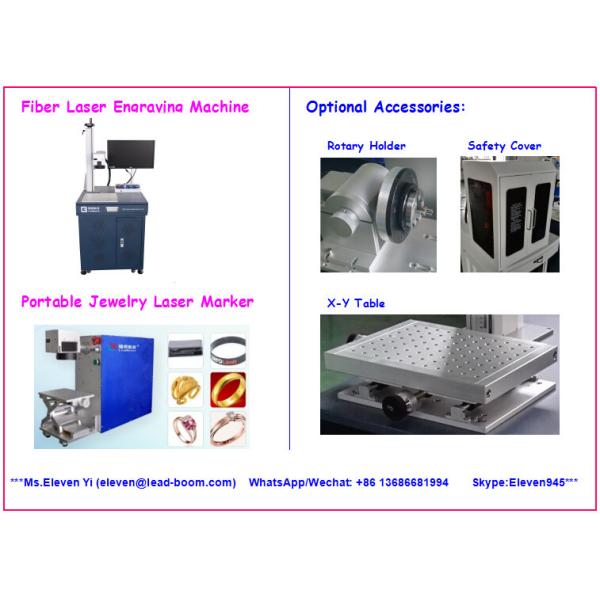

Laser Dog Tag Fiber Laser Engraving Machine For Brass Copper / Aluminium

Brand Name : Raycus Laser Source

Model Number : LB-MF20

Certification : CE

Place of Origin : China

MOQ : 1 set

Payment Terms : T/T, L/C, Western Union

Supply Ability : 25 sets per month

Delivery Time : 7 working days

Packaging Details : Standard Export Wooden Case (Polywood)

Application : Laser Engraving on Metal

Certificate : CE , FDA

Laser Power : 30W

Laser Source : Germany IPG

Engraving Area : 110x110mm

Control Software : EZCAD

Cooling System : Air-cooling

Power Consumption : 0.8KW

Power Supply : 220V / 50Hz

Keywords : Metal deep Laser Engraving

Contact Now

Laser Dog Tag Fiber Laser Engraving Machine Stainless Steel Brass Copper Aluminium

Machine Profile

Fiber Laser Marking Machine adopted original fiber laser source and high speed galvanometer scanning system with stable power, excellent optical mode, beam with high quality, fast marking speed, good effects and high efficiency, it can meet the demand for mass production.

Machine Features

1 Advanced intelligent core,upgraded control card
2 One PC can control several machines at the same time
3 Tablet PC can be as a controller by wireless interface
4 Small bulk,light weight,working speed increased by 20%
5 Intelligent control,easy operation,labor cost saving

Technical Parameters

Type

LB-MF10 LB-MF20 LB-MF30

Laser Power

10W 20W 30W

Laser wavelength

1064nm 1064nm 1064nm

Beam quality

M2≤1.3 M2≤1.3 M2≤1.3

Laser repetition rate

20KHz~80KHz 20KHz~80KHz 20KHz~200KHz

Working area

50×50mm~110×110mm 70×70mm~175×175mm 70×70mm~200×200mm

Marking speed

≤7000mm/s ≤8000mm/s ≤8000mm/s

Min.characters

0.15mm 0.15mm 0.15mm

minimum line width

0.01mm 0.01mm 0.01mm

Repeated precision

±0.001mm ±0.001mm ±0.001mm

Cooling system

air-cooled

air-cooled

Standard Accessories (Fiber Laser Marking Machine)
(1) A set of 20W / 30W Fiber Laser Device (Raycus) or IPG Fiber Laser
(2) A set of Scanning System (Galvotech)
(3) A set of high-speed Scan Lens (Singapore Ronar-Smith)
(4) 110mm x110mm Fiber Focus Lens (Singapore Ronar-Smith)
(5) A set of Laser Beam Expanders (Singapore Ronar-Smith)
(6) Motion control card
(7) A set of marking control system
(8) A set of marking software
(9) An industrial computer
(10) A red laser pointer
(11) A pedal switch
(12) Working table(300mmX300mm)
(13) Laser power supply

(14) Operation Manual Training Video

Laser Dog Tag Fiber Laser Engraving Machine For Brass Copper / Aluminium

Application Fields

A . Materials: metal and various nonmetal materials, high hardness alloy steel, oxide, electroplating and vacuum plating, epoxy resin, printing ink, ABS and other engineering plastic.

B . Industry: plastic keypad, components of digital products, electronic components, electrical appliances, jewelry, precision machinery, hardware accessories, glasses, clocks and watches, vehicle and motor accessories, sanitary ware, communication products, medical devices, integrated circuit(IC), building material, pipe materials, more suitable for the marks of high demand of accuracy, speed and depth.

Laser Dog Tag Fiber Laser Engraving Machine For Brass Copper / Aluminium

Laser Dog Tag Fiber Laser Engraving Machine For Brass Copper / Aluminium

Laser Dog Tag Fiber Laser Engraving Machine For Brass Copper / Aluminium

After-Sales Service
1. All of our machine will be fully-checked by our quality control department before the shipment. We guarantee all of our laser machines have a one-year warranty (quick-wear parts not included).

2. Training 1-2 technician with free.

3. Training details: operation principles, system and structure, safety and maintenance, software, the processing technique, and so on.
4. Numerous feedback from our clients have proven that our laser machines are stable in performance with rare malfunction. However, we would like to handle it as follows once malfunction occurs:
a.We guarantee that we will give you a clear reply within 24 hours.
b. Customer service staff will assist and guide you to analyze the malfunction in order to locate the cause.
c. If the malfunction is caused by improper operation on software and other soft faults, we will help solve the problem on line.

d. We will offer plenty of online supports, just like detailed technical and installation instructions by email, video, telephone.
