Stainless Steel Jewelry Soldering Machine Finger Ring Bracelet Gold Copper Welding
Machine Profile

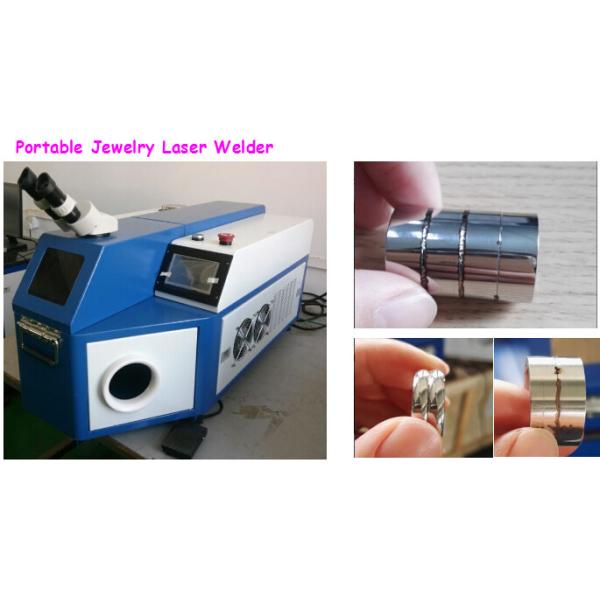

LB-TW80 Laser Welding Machine is specially designed for jewelry industries and electronics, which imported advanced technology and adopts high quality accessories, the whole machine is more efficient, more durable, more convenient and environmental protection.
Technical Advantages
The whole machine with ergonomics design, more suitable for jewelry industry, nice appearance, stable performance, to meet the requirements for long time continuous work.
Applicable for welding and repairing metal materials, including stainless steel, 18K gold, platinum,925 silver and other metals.
Big internal space, convenient to put the tool and fixture.
Switch for adjusting laser parameters installed in working area, easy to operate.
Adjustable LED shadowless lamp, imported microscope, more clear to observe the welding position.
Water-air cooling system internally installed, machine with small volume, low power consumption, no need industrial power, convenient to operate in small shop or factory.
Small heating affects for welding, strong joints with nice and smooth surface, convenient operation, fast speed, high efficiency, more depth, less distortion, efficient environmental protection and pollution-free
High-definition CCD monitor is more convenient to observe the welding position. (Optional)
Technical Parameters
| Model | LB-TW80 |
| Laser source type | Nd:YAG |
| Laser wavelength | 1064nm |
| laser class | 4 |
| Pulse output energy | 0.5-60J |
| Average laser power | 80W |
| Pulse width | 1-5ms |
| Pulse frequency | 1-6Hz |
| Spot diameters | 0.1-2.0mm |
| Focusing system | Microscope + automatic light-filtering protection system |
| Cooling system | Internal water-air system |
| Power | 220V / 50Hz |
| Machine Size | 1050*560*650mm |
| Weight | 60KG |
Production Application of laser welding machine
Laser welding can be used to the welding between the same metal materials, such as Titanium, Nickel, Tin, Zinc, Copper, Aluminum, Chromium, Niobium, Gold, Silver and all kinds of Alloy.
This machine is applied to a variety of industries, such as Mobile Communications, Electronics, Clocks and watches, Glasses, Jewelry Accessories, Metal products, Precision Instruments, Medical Equipment, and etc.
Leadboom Company Information
Other model(Laser marking machine, laser cutting and engraving machine)
